BFS ExRay XC Extended Range Nozzles

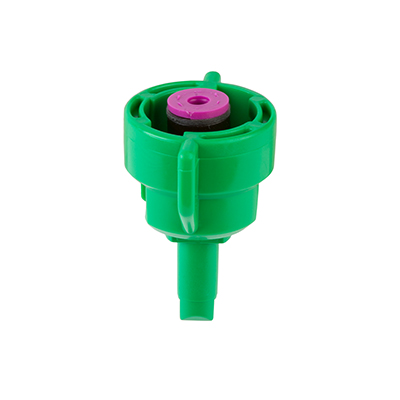

Achieve up to 90% drift reduction, and cover a wider application rate (volume) from each nozzle size in use. Get the same rates of coverage that you would normally need 3 nozzles to achieve. The nozzles are available as either straight down or angled (30 degree) versions.
How they work
ExRay XC nozzle features an extra, variable, pre-orifice to achieve the “Extended Range” of output, simply by varying the operating pressure. Incorporating Air Induction technology, the number of driftable droplets generated is minimised allowing up to 90% drift reduction to be achieved, even at practical working pressures. ExRay XC nozzles are supplied ready-made up with three
component, parts plus a standard ISO 8mm cap and will fit any nozzle body that accepts nozzle filters.
The ExRay XC valve and cap assembly replaces the standard cap seal and the nozzle is fitted into the cap in the normal way.
TRIALS: Undergoing extensive field trials, the commercial launch of these nozzles will be announced shortly but sprayer operators currently state that when spray is applied the ExRay XC nozzles are visibly superior to currently available low drift jets.
IT IS ESSENTIAL that the correct combination of ExRay XC valve and nozzle are used together. See chart here.
1st Column – ExRay XC valve colour
2nd column – Nozzle colour
3rd column – Nozzle metering washer colour
Note: ExRay XC 01 nozzles cannot be used at pressures below 2 bar. ExRay XC 015 and 02 nozzles cannot be used at pressures below 1.5 bar.
