Features and Benefits
A single outlet on one side and manually rotatable four way turret on the other in a compact, lightweight assembly;
- Incorporates two fast-acting pneumatically actuated valves to select either or both outlets. Requires suitable switch to be installed in the cab
- Fail safe valve design with air to open, stainless steel springs to close
Eliminates the need for twin spraylines or ‘back to back’ configurations
Compact design to fit available spray boom space. Hinged clamp options; 1/2", 3/4", 1", 20mm and 25mm
Practical Applications
Provide a permanent home for a liquid fertiliser dribble bar
Fit two different sizes of liquid fertiliser nozzles for a wider range of application rates. Operate each singly then both together;
- For example; a red (04) and a grey (06) offer a five fold application range
- Suitable controller can select outlet(s) and pressures to apply variable rates across field
Makes an alternative nozzle readily available and easily selected;
- Save time switching between the most commonly used nozzles
- Switch between standard and drift-reducing nozzles as spraying conditions change in the field
- Comply with label requirements by switching to LERAP 3 star rated nozzles to eliminate water course buffer zones
- Switch nozzles on the move in the event of a blockage
- Response time 0.1 seconds to open and close
Specifications & Dimensions
- Male bayonet for fitting EF3 type caps (Hypro®, Teejet®, Arag®, Geoline®, Agrotop®, Lechler®)
- Each outlet has a flow capacity of 6.0 lpm (equivalent to size 15 nozzle) with negligible pressure drop
- Pneumatic actuation of valves at 3-7 bar. Normally closed up to 10 bar liquid pressure
- 3/8” (9.53 mm) feed spigot to fluid pipe
- 0-50°C operating temperature (-40 to 80°C dry storage)
- Waterproof to BSEN60529 (IP65). Tolerant to typical UV, dust, vibration and impact likely to be encountered in an an agricultural spraying environment
- Dry weight 211g
- 4mm push fit air inlet and outlet connectors

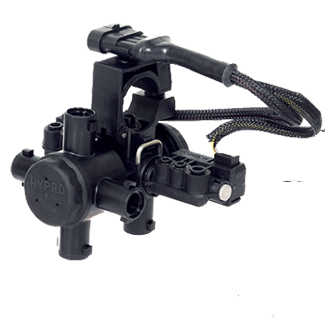

Duo React™ - pneumatic only option
- For use as a section control valve, actuating up to 7 pneumatic slaves
- Flow to each nozzle individually controlled by 12v dc signal (normally closed)
- Tyco AMP superseal 4-way electrical connector
- Low current draw of just 0.25 amps for each solenoid
- Surge protected, range tolerated 9-16 vdc
- Response time controlling 7 pneumatic slaves; 0.1 seconds to open, 0.3 seconds to close
- Dry weight 343 g
- Push-fit air connectors; 6 mm inlet, 4 mm outlet
- Response time 0.1 second to open and close
- Dry weight 211g
- 4 mm push fit air inlet and outlet connectors

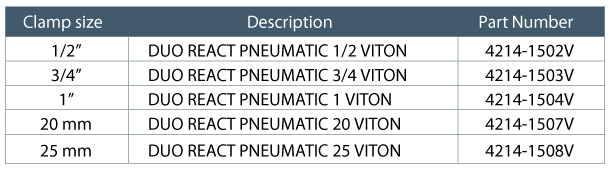

Clamp size Description Part Number
| 3/4” DUO REACT PNEUMATIC 3/4 VITON | 4214-1503V |
| 1” DUO REACT PNEUMATIC 1 VITON | 4214-1504V |
| 20 mm DUO REACT PNEUMATIC 20 VITON | 4214-1507V |
| 25 mm DUO REACT PNEUMATIC 25 VITON | 4214-1508V |
