Bumblebee LED Headlight Module
Bumblebee LED Headlight Module
Bumblebee LED Headlight Module

Bumblebee LED Headlight Module

For pricing and available discounts on this product please contact us
(Exc. 20% VAT)
960-403B Bumblebee 12-24V 18 Low Beam; Left Hand Traffic
960-401B Bumblebee 12-24V 18High Beam
+
Part Number
960-403B
Weight
970 g


BUMBLEBEE

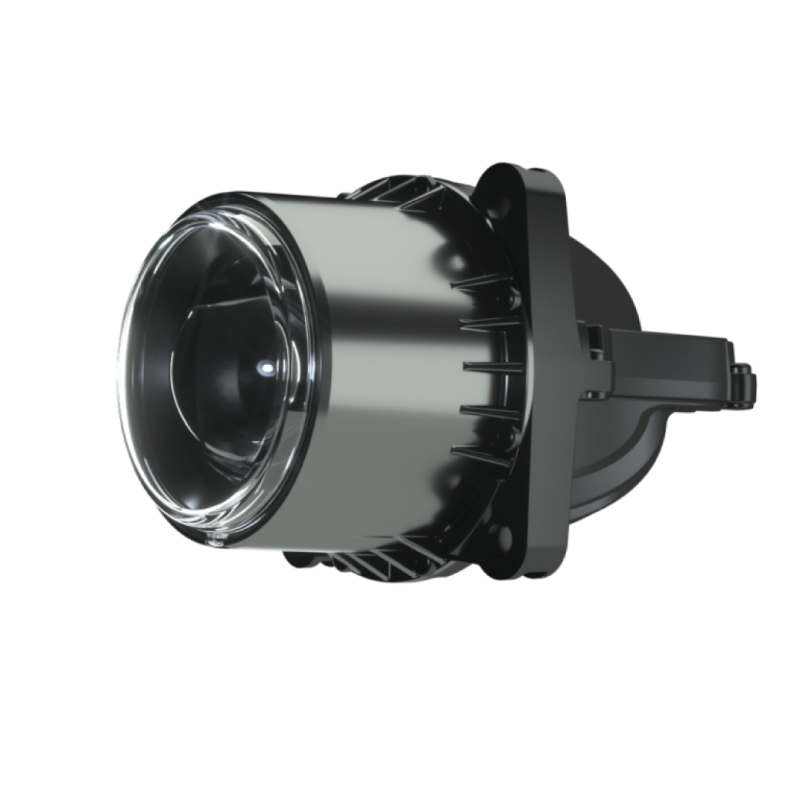

The Bumblebee headlight module delivers an even, streak-free light pattern that greatly improves the driver’s vision. This ECE-approved headlight module comes in high beam and low beam versions, specifically designed and optimized for heavy-duty vehicles. Thanks to the well-balanced color temperature, the driver will stay alert longer. The Bumblebee’s exceptional light output in combination with the long light range places it among the top of the currently available options on the market.



Key Features

  • ECE-approved module
  • Easily adapted to your custom design
  • Light pattern optimized for heavy-duty vehicles

Technical Data

Colour Temperature:      5000K
Nominal Voltage DC:      12V, 24V
Input Voltage DC:            9 - 32V
Power Consumption:      High Beam 17W, Low Beam 17W
Nominal Current at:        High/Low Beam 1.4 A@12V, 0.7 A@24V
Connector:                        Built-in Deutsch DT-2 (2-pin)
Mount: 3 pcs M6 screw
Shock: 60G
Vibration: 4Grms 24-2000Hz
Lens: Glass
Body / Housing: Aluminium
Weight: 0.97kg
IP Rating: IP68, IP6K9K
Salt Spray Test: ISO 9227 240H
EMC: CISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2, ISO 10605, ISO 11452, EN 61000-4-2, EN 13309
ECE Approvals: High Beam: ECE R112B, Low Beam RHT: ECE R112B, Low Beam LHT: ECE R112B, Low Beam Symmetric: R113D
Operating Temperatures :-40°C... +85°C (Full Power -40°C... +50°C)
