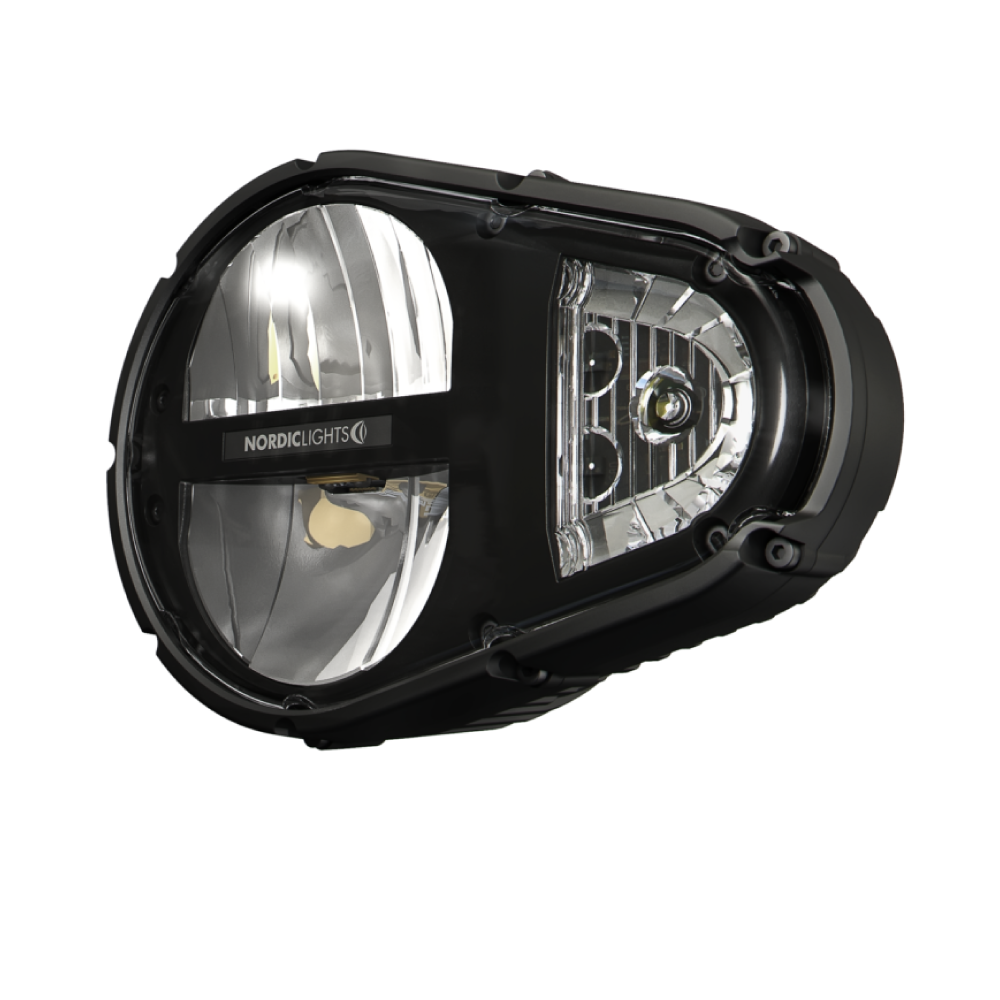

Sculptor N6001 QD LED Headlight Unit
Sculptor N6001 QD LED Headlight Unit
Sculptor N6001 QD LED Headlight Unit
Sculptor N6001 QD LED Headlight Unit

Sculptor N6001 QD LED Headlight Unit

£265.00
(Exc. 20% VAT)
(£318.00 Inc. VAT)
960-021 Sculptor LED N6001 DualBeam 12-24V LH-Traffic RIGHT BltInDeutsch ECE Damp
960-022 Sculptor LED N6001 DualBeam 12-24V LH-Traffic LEFT BltInDeutsch ECE Damp
+

NORDIC LIGHTS® Sculptor N6001 QD driving light integrates headlight, indicator, and parking lights in one unit. Unbeatable in its durability, this heavy-duty light is equipped with our integrated Quake dampening system, withstanding shocks of 60G and vibration of 15.3 Grms at 24–2000 Hz. The Sculptor N6001 QD has rear mounting and is very useful in agricultural, construction, and trucking applications. It has a dual-beam function with both dipped and full beams, which offers any vehicle using this light an amazing advantage.



Technical Data

Nominal Voltage DC 12 - 24V
Input Voltage DC 9 - 32V
Power Consumption High Beam 34W, Low Beam 17W, Park 2.7W, Indicator 17.5W
Nominal Current at 12 / 24VPassing Beam 1.8A @ 12V, 0.9A @ 24V, Driving Beam 3.6A @ 12V, 1.8A @ 24V
Connector Built-in Deutsch 6-pin
Mount Single Bolt M10
Shock 60G
Vibration 15.3Grms 24-2000Hz
Lens PC
Body / Housing Aluminium
Weight 2.5kg
IP Rating IP68, IP6K9K
Salt Spray Test ISO 9227 240H
EMC CISPR 25 Class 3, EN 13309, EN 61000-4-2, ISO 14982-2, ISO 13766, ISO 11452, ISO 7637-2, ISO 10605
ECE Approvals Passing beam: ECE Regulation 112, class B for right & left hand traffic, Driving beam: ECE Regulation 112, class B, Reference number 25, Position light: ECE Regulation 7, Direction Indicator: ECE Regulation 6, class 1b (front), Direction Indicator: ECE Regulation 6, class 5 (side)
Operating Temperatures -40°C... +85°C (Overheat protected)

To view Brocure please CLICK HERE
