Quick TeeJet Mulitple Nozzle Holders

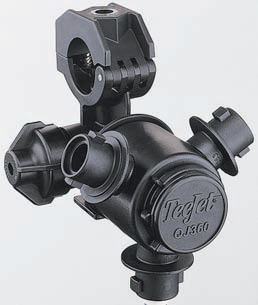

QJ360C Nozzle Body Series for Wet Booms

• Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.
• Positive shutoff between each position.
• Automatic spray alignment using flat fan spray tips.
• Maximum operating pressure of 300 PSI (20 bar).
• Available in 25 mm, ½, ¾ or 1 pipe connections.
• Includes ChemSaver® diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI (0.7 bar). See page 68 for additional 21950 ChemSaver spring capacities.
• Standard EPDM diaphragm with Viton® available as an option.
• Also available with optional Air ChemSaver or e-ChemSaver® shutoff valves, see page 69 for additional information.
• Flow Rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop
• Mounts to a 3⁄8 or 9.5 mm hole drilled in pipe or tubing.
• Moulded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16 or M8 bolt.
• Hinged upper clamp reduces assembly time and fits inside common boom channels.

QJ360E Nozzle Body Series for Wet Booms

• Available to fit 20 mm O.D. tubing only.
• Flow Rate: 1.5 GPM (5.7 l/min) at 5 PSI (0.34 bar) pressure drop, 2.1 GPM (8.0 l/min) with 10 PSI (0.69 bar) pressure drop.
• Reduced internal cavity to increase ChemSaver shut-off speed.
• Notched inlet tube allows for more complete boom drainage and reduces sediment buildup.
